Accretion radius¶

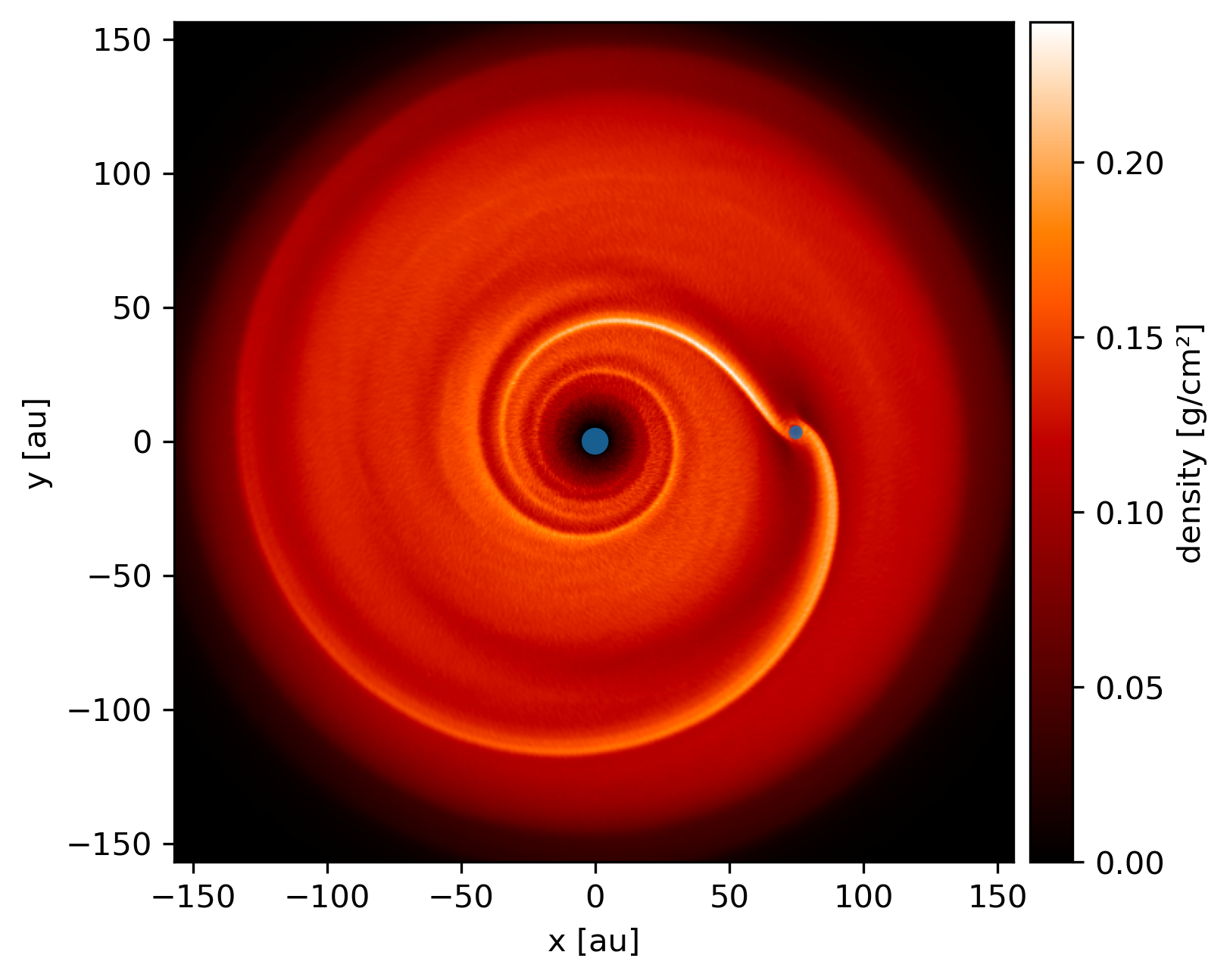

Plot the accretion radius on the sink particles.
Note
The data is from the example dataset of a Phantom simulation with a single dust species using the separate particles (or “2-fluid”) method with an embedded planet.
import plonk
from plonk.utils.visualize import plot_smoothing_length
snap = plonk.load_snap('disc_00030.h5')
# Here "..." means take all sinks
indices = ...
snap.set_units(position='au', density='g/cm^3', projection='cm')
ax = snap.image('density', cmap='gist_heat')
plot_smoothing_length(snap=snap.sinks, indices=indices, alpha=0.8, ax=ax)
